GLFW self-priming pump

The sanitary self priming pump is a liquid delivery equipment that combines high efficiency, cleanliness and convenience. It is designed for working conditions with strict hygiene requirements.

Category:

E-mial:1577170999@qq.com

Product Description

The sanitary self priming pump is a liquid delivery equipment that combines high efficiency, cleanliness, and convenience. It is designed for working conditions with strict hygiene requirements. The product has a self-priming function and can be quickly started without pre-filling, effectively avoiding the cumbersome problems of starting traditional pumps and greatly improving work efficiency.
The whole machine is made of stainless steel that meets food hygiene standards. The inner wall is smooth and has no dead corners. It is thoroughly cleaned to prevent liquid residue and cross-contamination. It has a compact structure, small footprint, stable operation, and low noise. It is your ideal choice for high-quality fluid delivery.
In actual use, the sanitary self-priming pump shows excellent stability and reliability. Whether it is conveying clear liquid or a medium with a small amount of bubbles, it can maintain continuous and efficient flow output. The pump body design is easy to disassemble and assemble, simple to maintain, and convenient for daily cleaning and maintenance. Whether you are pursuing operational safety, hygiene standards, or convenient use, this pump can meet your multiple needs.

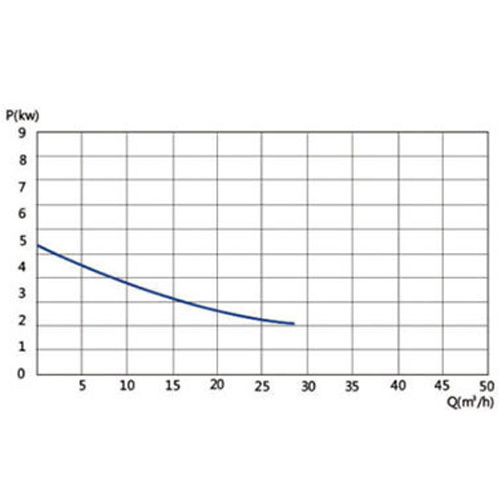

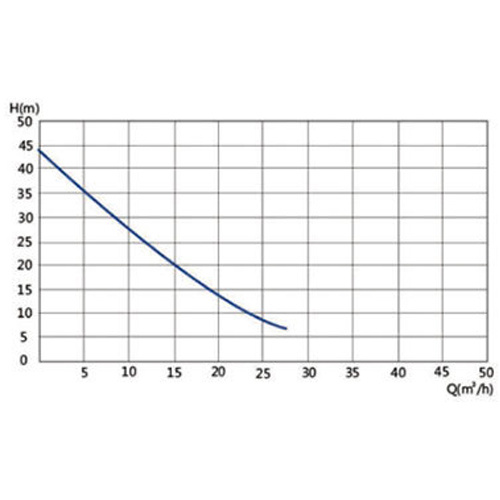

Performance Curve

Medium: 20℃ beverage
Error: ±5%

Speed: 1450 RPM
Frequency: 50Hz

Inlet Diameter: φ76.2DN80
Outlet Diameter: φ63.5DN65

Suction Lift: 8M

A safety margin should be considered when selecting motor power:

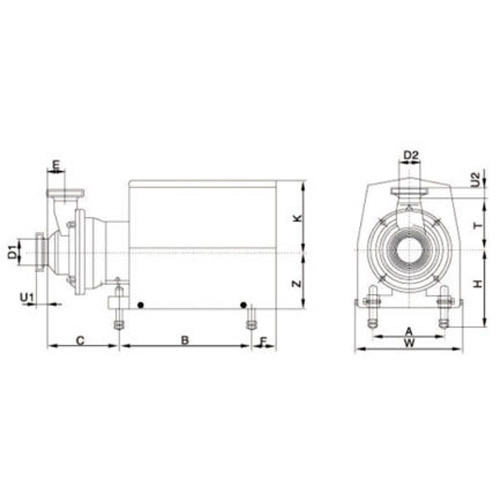

SLRP-20 Technical Specifications

Dimensions	Motor Power
	4Kw	5.5Kw
A B C E	190 320 210 56	216 400 219 56



F H min H max	88.5 207 277	72.5 215 305


K R T	189.5 154 200	215.5 154 200


W Z Weight (kg)	272 147 78	322 167 99

Dimensions	ISO Clamp	ISO Union	DIN Union	SMS Union	Bs Union	DIN Flange
D1	76.1	76.1	DN80	76.1	76.1	DN80
U1	21.5	21.5	26	24	21.5	24
D2	63.5	63.5	DN65	63.5	63.5	DN65
U2	21.5	21.5	26	24	21.5	24
