GLFC stainless steel magnetic pump

Category:

Product Description

The pump's flow section uses all-stainless steel material, exhibiting excellent corrosion resistance to organic acids, organic compounds, alkalis, neutral solutions, and various gases. The double-helix groove and right-angle shaft bearings provide strong wear resistance, ensuring product longevity. It is an ideal pump for leak-free conveyance of corrosive media.

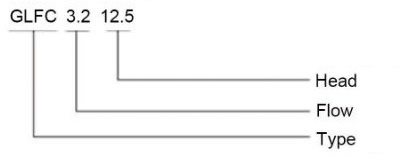

Model Description

Performance Parameters

Model	Diameter (mm)		Flow Rate (m³/h)	Head (m)	Net Positive Suction Head (NPSHr) (m)	Motor Power (kW)	Speed (r/min)	Voltage (V)
Model	Inlet	Outlet	Flow Rate (m³/h)	Head (m)	Net Positive Suction Head (NPSHr) (m)	Motor Power (kW)	Speed (r/min)	Voltage (V)
GLFC-3.2-12.5	32	20	3.2	12.5	4.5	1.1	2900	380
GLFC-3.2-20				20	4.5	1.1	2900	380
GLFC-3.2-32				32	4.5	1.5	2900	380
GLFC-6.3-20	40	25	6.3	20	380	2.2	2900	380
GLFC-6.3-32				32	4.5	3	2900	380
GLFC-6.3-50				50	4.5	5.5	2900	380
GLFC-12.5-20	50	32	12.5	20	4.0	3	2900	380
GLFC-12.5-32				32	4.0	4	2900	380
GLFC-12.5-50				50	4.0	7.5	2900	380
GLFC-12.5-80				80	4.0	18.5	2900	380
GLFC-25-20	65	50	25	20	4.0	4	2900	380
GLFC-25-32		50		32	4.0	7.5	2900	380
GLFC-25-50		40		50	4.0	15	2900	380
GLFC-25-80		40		80	4.0	22	2900	380
GLFC-50-20	80	65	50	20	3.5	7.5	2900	380
GLFC-50-32		65		32	3.5	15	2900	380
GLFC-50-50		50		50	3.5	22	2900	380
GLFC-50-80		50		80	3.5	37	2900	380
GLFC-100-20	100	80	100	20	3.2	15	2900	380
GLFC-100-32		80		32	3.2	22	2900	380
GLFC-100-50		65		50	3.2	37	2900	380
GLFC-100-80		65		80	3.2	55	2900	380
GLFC-200-50	125	100	200	50	3.2	75	2900	380
GLFC-200-80	125	100	200	80	3.2	90	2900	380
