GLFB series stainless steel self-priming pump

Category:

Product Description

Product Features
Self-priming pumps are self-priming centrifugal pumps. They are characterized by their compact structure, ease of operation, smooth and easy maintenance, high efficiency, long lifespan, and strong self-priming capabilities. No bottom valve is needed in the pipeline; before operation, only ensure that a certain amount of priming liquid is stored in the pump body. Different liquids can use self-priming pumps of different materials.

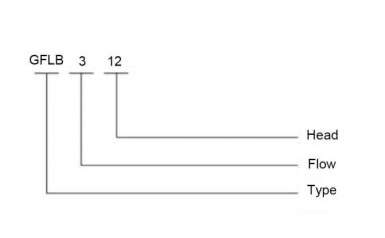

Model Description

Performance Parameters

Model	Diameter (mm)		Flow Rate (m³/h)	Head (m)	Net Positive Suction Head (NPSHr) (m)	Motor Power (kW)	Speed (r/min)	Voltage (V)
Model	Inlet	Outlet	Flow Rate (m³/h)	Head (m)	Net Positive Suction Head (NPSHr) (m)	Motor Power (kW)	Speed (r/min)	Voltage (V)
GFLB-3-12	20	12	3	12	6.0	0.37	2900	220/380
GFLB-6.6-15	25	20	6.6	15	6.0	1.1	2900	380
GFLB-6.6-15	32	25	6.6	15	6.0	1.1	2900	380
GFLB-6.6-25	32	25	6.6	25	5.5	1.1	2900	380
GFLB-10.8-20	40	32	10.8	20	4.0	2.2	2900	380
GFLB-12-32	40	32	12	32	4.0	4.0	2900	380
GFLB-14.4-25	50	40	14.4	25	4.0	4.0	2900	380
GFLB-13.2-32	50	40	13.2	32	4.0	4.0	2900	380
GFLB-7.8-50	50	32	7.8	50	4.0	5.5	2900	380
GFLB-16.8-25	65	50	16.8	25	4.0	5.5	2900	380
GFLB-27-32	65	50	27	32	4.0	7.5	2900	380
GFLB-50-20	80	65	50	20	4.0	7.5	2900	380
GFLB-50-32	80	65	50	32	4.0	15	2900	380
GFLB-50-50	80	50	50	50	4.0	18.5	2900	380
GFLB-100-32	100	80	100	32	4.0	22	2900	380
GFLB-100-50	100	65	100	50	4.0	30	2900	380
