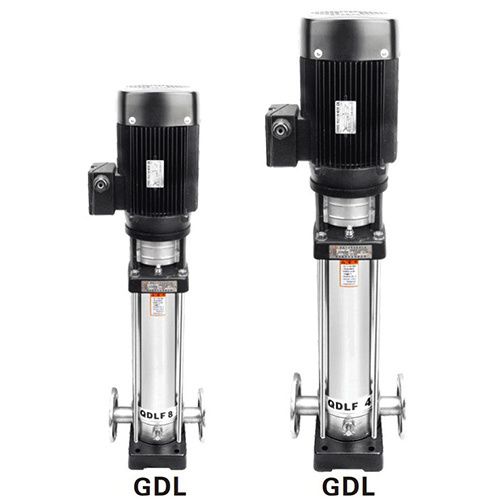

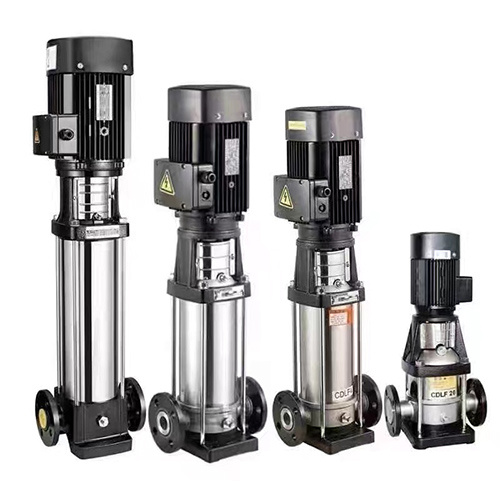

Vertical multistage pump

Category:

Product Description

This pump is the latest model and can be easily installed in the middle of any horizontal pipe section. It can meet the needs of water supply, drainage, and fire protection design for high-rise buildings, deep wells, and mines, and is the best pump model for various industries to transport cold or hot water, or liquids with similar physical and chemical properties to water.

Technical Parameters

Model	Flow rate (m³/h)	Head (m)	Suction head (m)	Motor power (KW)
25GDL2-12×3	2	36	7.5	1.1
25GDL2-12×4	2	48	7.5	1.1
25GDL2-12×5	2	60	7.5	1.5
25GDL2-12×6	2	72	7.5	1.5
25GDL2-12×7	2	84	7.5	2.2
25GDL2-12×8	2	96	7.5	2.2
25GDL2-12×9	2	108	7.5	2.2
25GDL2-12×10	2	120	7.5	3
25GDL2-12×11	2	132	7.5	3
25GDL2-12×12	2	144	7.5	3
25GDL4-11×3	4	33	7.5	1.1
25GDL4-11×4	4	44	7.5	1.5
25GDL4-11×5	4	55	7.5	2.2
25GDL4-11×6	4	66	7.5	2.2
25GDL4-11×7	4	77	7.5	3
25GDL4-11×8	4	88	7.5	3
25GDL4-11×9	4	99	7.5	3
25GDL4-11×10	4	110	7.5	4
25GDL4-11×11	4	121	7.5	4
25GDL4-11×12	4	132	7.5	4
25GDL4-11×13	4	143	7.5	4
40GDL6-12×3	6	36	7.5	1.5
40GDL6-12×4	6	48	7.5	2.2
40GDL6-12×5	6	60	7.5	2.2

Technical Parameters

Model	Flow rate (m³/h)	Head (m)	Suction head (m)	Motor power (KW)
40GDL6-12×6	6	72	7.5	3
40GDL6-12×7	6	84	7.5	3
40GDL6-12×8	6	96	7.5	4
40GDL6-12×9	6	108	7.5	4
40GDL6-12×10	6	120	7.5	4
40GDL6-12×11	6	132	7.5	5.5
40GDL6-12×12	6	144	7.5	5.5
50GDL12-15×2	12	30	7	2.2
50GDL12-15×3	12	45	7	3
50GDL12-15×4	12	60	7	4
50GDL12-15×5	12	75	7	5.5
50GDL12-15×6	12	90	7	5.5
50GDL12-15×7	12	105	7	7.5
50GDL12-15×8	12	120	7	7.5
50GDL12-15×9	12	135	7	11
50GDL12-15×10	12	150	7	11
50GDL18-15×3	18	45	7	4
50GDL18-15×4	18	60	7	5.5
50GDL18-15×5	18	75	7	7.5
50GDL18-15×6	18	90	7	7.5
50GDL18-15×7	18	105	7	11
50GDL18-15×8	18	120	7	11
50GDL18-15×9	18	135	7	15
50GDL18-15×10	18	150	7	15
65GDL24-12×2	24	24	6	3
65GDL24-12×3	24	36	6	4
65GDL24-12×4	24	48	6	5.5
65GDL24-12×5	24	60	6	7.5
65GDL24-12×6	24	72	6	7.5
65GDL24-12×7	24	84	6	11
65GDL24-12×8	24	96	6	11
65GDL24-12×9	24	108	6	15
65GDL24-12×10	24	120	6	15
80GDL36-12×2	36	24	5.5	4
80GDL36-12×3	36	36	5.5	5.5
80GDL36-12×4	36	48	5.5	7.5
80GDL36-12×5	36	60	5.5	11
80GDL36-12×6	36	72	5.5	11
80GDL36-12×7	36	84	5.5	15
80GDL36-12×8	36	96	5.5	15
80GDL36-12×9	36	108	5.5	18.5
80GDL36-12×10	36	120	5.5	18.5
80GDL54-14×2	54	28	5	7.5
80GDL54-14×3	54	42	5	11
80GDL54-14×4	54	56	5	15
80GDL54-14×5	54	70	5	18.5
80GDL54-14×6	54	84	5	18.5
80GDL54-14×7	54	98	5	22
100GDL72-14×2	72	28	4.5	11
100GDL72-14×3	72	42	4.5	15
100GDL72-14×4	72	56	4.5	18.5
100GDL72-14×5	72	70	4.5	22
100GDL72-14×6	72	84	4.5	30
100GDL72-14×7	72	98	4.5	30
