Single-stage single-suction chemical centrifugal pump
Category:
Product Description
Materials Used
304, 316L, 2205, 2507, Titanium
Product Overview
Single-stage chemical centrifugal pump, suitable for industrial and urban water supply and drainage, also suitable for agricultural irrigation and drainage. Used for conveying clear water or other liquids with physical and chemical properties similar to clear water, with a temperature not exceeding 80℃
Performance Range
Speed: 2900r/min and 1450r/min
Inlet Diameter: 50~200mm
Flow Rate: 6.3~400㎥/h
Head: 5~125m

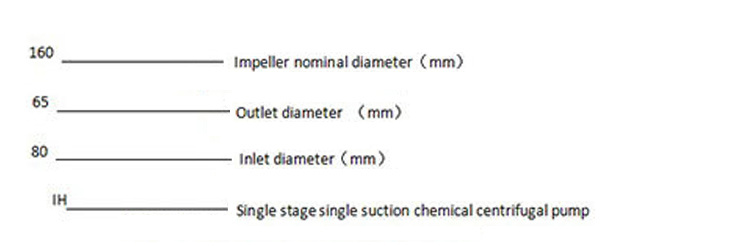

Model Description
| Model | Flow Rate (m³/h) | Head (m) | Speed (r/min) | Motor Power (kKW) | Diameter (mm) | |
| Suction | Discharge | |||||
| IH50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IH50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IH50-32-200 | 12.5 | 50 | 2900 | 5.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IH50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IH65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IH65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IH65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IH65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IH65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IH80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| IH80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IH80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IH80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IH80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IH100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IH100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IH100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IH100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IH100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IH125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IH125-100-250 | 200 | 100 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 11 | 125 | 100 | |
| IH125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IH125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IH150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IH150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IH150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IH200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IH200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IH200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
